What the LE error code actually means

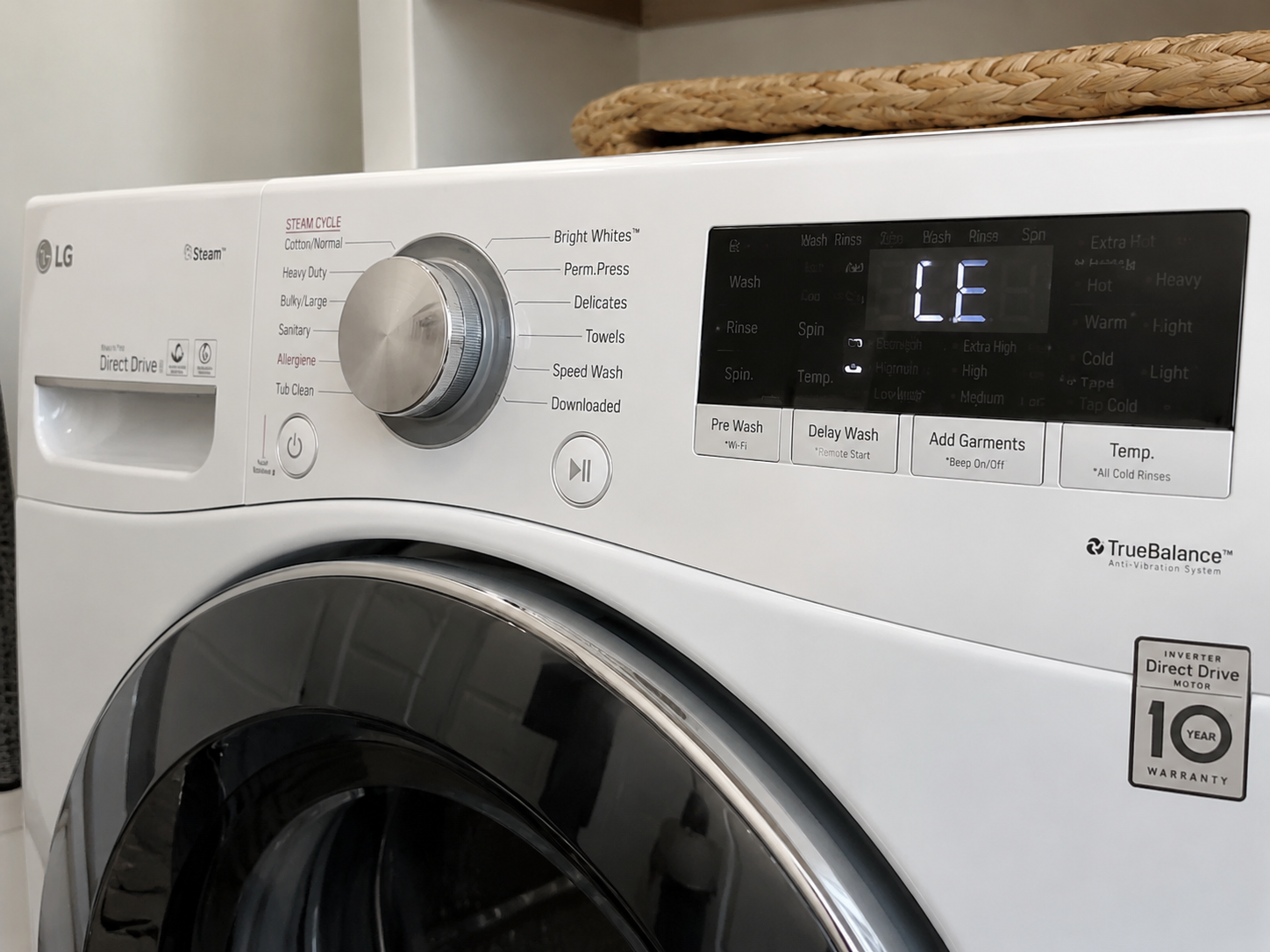

LE stands for Locked motor Error. When your LG washer displays LE, it means the motor tried to spin the drum and couldn't. Something stopped it.
The code looks alarming, but in most cases it doesn't mean the motor itself has failed. It means the motor detected too much resistance and shut itself down as a safety measure. Think of it as the washer protecting itself from damage rather than pushing through a problem that could cause something worse to break.
The good news: LE has a short list of causes, and most of them are fixable without replacing the motor.
The most common causes of the LG LE error code
Overloaded drum
This is the first thing to check and the easiest fix. LG front-load washers are sensitive to overloading — a drum packed too tightly creates more resistance than the motor is designed to push through, and the LE code appears as the safety response.
If you just loaded a heavy wash — towels, blankets, denim — open the door, remove a third of the load, and restart the cycle. If the LE code clears, overloading was the cause. Going forward, LG recommends filling the drum loosely to about three-quarters capacity on heavy items.
Clothing caught under the drum seal
Small items — socks, underwear, a child's shirt — can slip past the door gasket and get wedged between the drum and the tub. When this happens, the drum physically can't rotate freely and the motor throws the LE code immediately.
Reach into the gasket folds and feel around the inner edge of the drum opening. If you find something caught there, remove it and restart. This is more common than most people expect and it takes about 30 seconds to check.
Stator or rotor fault
LG's direct drive motor sits directly on the back of the drum shaft with no belt or pulley between them. It has two main components: the stator (stationary winding) and the rotor (rotating magnet assembly). When either develops a fault — a cracked rotor, a short in the stator winding, or a loose connection between the two — the motor can't generate enough torque and the LE code appears.
This is the most common cause on machines that have been running fine and suddenly develop LE with no change in load size. A technician can test the stator windings with a multimeter in minutes. Stator replacement typically runs $80 to $150 for the part. The rotor is less commonly the issue but is also replaceable.
Hall sensor failure
The hall sensor monitors the rotor's speed and position and sends that data to the control board. When it fails, the board receives incorrect or no signal from the motor and triggers the LE code — even if the motor itself is perfectly fine.
Hall sensor failure is often misdiagnosed as a motor problem because the symptom is identical from the outside. The sensor is a small, inexpensive component ($15 to $40) and is almost always worth replacing before condemning the motor.
Control board fault
If the stator, rotor, and hall sensor all test fine, the control board is the next suspect. The board manages the motor drive signal — if it's sending incorrect voltage or no signal at all, the motor can't run and LE appears. Control board replacement is the most expensive diagnosis for LE, but it's also the least common. A technician will rule out everything else first.
What to try before calling a technician
Before booking a service call, work through these steps in order:
Step 1 — Unplug the washer for 10 minutes. A full power reset clears temporary error states. Some LE codes are caused by a motor that overheated mid-cycle and simply needs to cool down. Plug it back in and run a small test load.
Step 2 — Reduce the load. Remove a third of the laundry, redistribute what's left evenly in the drum, and restart. If the code clears, overloading was the cause.
Step 3 — Check the drum seal. Feel around the inner edge of the door gasket for anything caught between the drum and the tub. Remove it and restart.
Step 4 — Run a spin-only cycle. Select spin only with an empty drum. If LE appears immediately with nothing in the drum, the cause is mechanical or electrical — stator, hall sensor, or board — and requires a technician.
Is the LG direct drive motor worth repairing?
LG's direct drive motor is one of the most reliable washer motor designs on the market. It has fewer moving parts than a belt-driven motor and LG backs it with a 10-year warranty on the motor itself — separate from the general appliance warranty.
If your LG washer is within 10 years of purchase and the diagnosis is a stator or rotor fault, the motor component may be covered under that warranty. The warranty covers the part — not labor — so there will still be a service cost, but it significantly reduces the total repair bill.
For any LG washer under 8 years old showing an LE code, repair is almost always the right call. The drum, tub, and all surrounding components are typically in good condition — and the direct drive motor is the most repairable part on the machine.
See how we fixed an LG washer door and motor issue in Eastvale
For a real LG washer repair case from our service area, read how our technician diagnosed and fixed an LG washer that wouldn't unlock in Eastvale — a related fault that often appears alongside motor errors on the same platform.
LG washer LE error code repair in Riverside and the Inland Empire
IK Service diagnoses and repairs LG washer LE error codes across Riverside, Eastvale, Corona, Chino, Chino Hills, and Ontario.
We carry the hall sensors, stators, and rotor assemblies that cover the majority of LG LE diagnoses on the van, which means most repairs are completed on the first visit. We check the motor warranty status on every LG call before quoting parts. Call us for a same-day appointment — upfront pricing before any work begins.
